iPhone 7 Plus Audio / Sound problem

iPhone 7 and 7 Plus having audio or sound problem isn't rare.

When Audio IC is not working properly.
Symptoms:
  • Unable to record voice
  • Other party can't hear you while calling
  • Phone is lagging and slow
  • No Sound
One of it or some of those.. or all symptoms above you got, it's consider LAST stage of audio "cancer".

In our iPhone repair community, we called it iPhone 7 Audio IC Disease.

iPhone 7 Sound Problem
iOS 12 would show this message

Why it happened?
Short answer: Drop it too hard, or bend.. One of the pad below the Audio chipset is broken.



"Advise: DO NOT send to normal shop to repair this The audio ic is located behind Baseband and very near CPU. You don't want the dealer ended up to tell you now got another problem appear or totally became unable to POWER ON.
Of so many case that i repaired their failed attempted job. They "accidentally" overheated the components around. They either caused the iPhone became No Service (Baseband shorted) or device became unable to power on (CPU shorted).

Ended up at higher cost repair and time wasted."
Today we got an iPhone 7 Plus had this issue.



Let's take off the IC and look closer with microscope



iphone 7 c12
99% of audio disease is because of this pad broken. Even it's not missing, we MUST still need to build new track for it. I saw a lot technician didn't rebuild this track and the customer keep coming back with same problem.

Technical term of this fix is "jumper".


This is very important line that would cause totally malfunction of audio or sound.
C12 - I2S_AP_TO_CODEC_MCLK


iPhone 7 Plus audio ic repair
So this is the fix that must apply before we put Audio IC back


iPhone 7 audio sound ic repair
We still can see the green PCB glue on that area after repaired. If this iPhone suffer another dropping damage again, it would still working fine. The screen should break first before this problem reoccur.



Done!

 Update: We uploaded a video into YouTube "5 Dec 2018"

Friday, October 19, 2018

iPhone 6 Error 9

Countless people asking me how much is the motherboard..

"Apple center told me my motherboard is spoiled, it's beyond repair. Need pay them Rm12xx to replace whole device. Ridiculous!"

Before you buy the motherboard.. Please send the device to my shop and i check for you is it can be repairable.

90% of motherboard problem are can be repaired.

Example: A motherboard is RM 650. Motherboard repair price between RM 200 to RM 400. A second hand of  whole iPhone is RM 750.

We always quote you a fair price that lower than a board replacement... and much hell cheaper than Apple Center offer you device replacement at ridiculous price!!

"By the way, technically it's called Logic Board. Not motherboard. Motherboard is in the PC which you can plug in third party hardware. Logic Board on other hand, you cannot. Plug in their designed hardware only."

So today topic is iPhone 6 that is stuck in Recovery Mode. It failed to restore and show Error 9 in iTunes. Customer been to some shops telling them same story that it can't be repair.

Let me show you how is the professional repair it.... in my shop, of course.

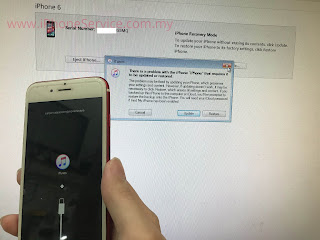

iPhone 6 Stuck at Recovery Mode. Most end user like to say Cable Mode or iTunes Logo Mode

Restore failed. A code appear. it's Error 9.

No matter how many PC or Mac you use to restore it.. it ended up with same error.

Error 9 is indicated NAND or NAND circuit failure.  NAND is the memory chip. Some people like to say HDD or Hard Disk. But in Apple schematic, they called it NAND.

We notice first bad news is "all the memory data inside" probably gone. Especially customer attempted to restore it and it failed.

Put in our board onto his device to TEST every parts such as  LCD, camera, buttons, battery, ports....
You don't want after we repaired the board and turn on found another problem then paying more.. Right?

Then call customer and quote him a price after we inspect the board damaged under the MICROSCOPE.

That's how professional checking procedure. Not Genius Bar that just telling you the Logicboard is spoiled and you pay whole device price. They don't even know what's wrong is the logicboard and which chipset or what circuit failed. They sure didn't check every parts of the device.
Wasted your time.

Apple trained them nothing in repairing except follow procedure of reading script to tell you what to pay.
Want more similar story? here is the Youtube link - Genius Bar caught ripping customer



Back to topic..

I found the NAND is the only issue instead of CPU. So by replace it can solve the problem.

Obviously this iPhone housing and LCD changed at other place before..
iPhone NAND tool
We use special tool that can read/write NAND. This tool is not cheap. Cost one thousand above and it just only works for specific models. Not every iPhone.
Tried to read the old NAND and it failed. So we put in new NAND to reprogram Serial Number, Address...
The iPhone won't be able to activate if we don't do this. Activate process is needed go through Apple Server and they will verify the device Serial Number, Wifi and Bluetooth address.

We also need to purchase the INFO of this device to reprogram it. It might take days to wait from server provide us the report of this iPhone.



I must need to blackmarked all the infomation.. Who knows Apple might saw this and blacklist this iphone from server.. So the user might ended up unable to activate or network blocked.
Once re-program done. Soldered the NAND back on the logicboard.

Voila~ Done!
