31 December 2019

Stuck Apple Logo / Boot Loop after Update iOS 13 | Data Recovery Fix

iOS 13 update killed your iPhone !!!

This month we repaired a lot of iPhones that stuck in the Apple logo. Most of them happened after updated the iOS.

Some of them already tried to restore (Format/Erase) the iPhone, the problem still the same.

I strongly believe this 13.3 version somehow killed one of the IC on the motherboard. I think Apple would release a newer version to fix this.

But it will be too late for those people that already stuck into this Apple logo problem.
Don't worry, we have a quick-fix method to bypass this problem and then to recover the data.


The iPhone just keeps waiting in the Apple logo and reboot loop.


But before you send it to us to recover the data...

Please make sure there is NO ONE restore it in iTunes. We don't want after repaired the problem and your data is empty.

It's a 99% success rate to fix this problem with your data remain if no one attempt to repair the motherboard before us.

Read this if you send it to another shop that seems unprofessional

Before you send it to them, make sure they not going to charge you if there is no data recovered. Because we are afraid they just want to earn easy money and restore your iPhone to hope it will be a software problem.

Our priority is to recover the data. We won't do anything risk to affect the data.


Repair on the same day is possible - YouTube

One of the boot-loop problems that I fixed.

Happy customer's feedbacks from stuck apple logo fixed.

One of the victims, on 21 December 2019. iOS 13.3 released.

A client from Melaka. She got this problem on the 24 of December. Lucky she didn't give up and found us to recover the data. We fixed it on 30 December 2019.
Need help with this problem?
Click here to WhatsApp



Too far away from Malaysia? Check these locations - Worldwide iPhone Repair Center



24 December 2019

iPhone Network IC problem repair | No Service / Signal Weak

There is so few Qualified technician to repair Network IC problem of iPhone

Yes, especially in Malaysia. They just know how to blindly changing the IC, but don't know which one is the real problem.
A lot of iPhones with the cellular signal problem I fixed. Most of these have been already attempted repair from other technicians.
They didn't know how to diagnosis and fix the real problem, they just keep changing the IC one by one until the problem is gone.

So this is why they need your iPhone for weeks or a month.



iPhone No service Network IC
This is one of the kind Network IC problem.
It only can detect Maxis, but no others.

This iPhone, the owner sent it to another shop before and collected back after a month but with the same problem. They failed to repair it.
Once in our hand, we opened up to check the motherboard condition. As usual cases we encountered, most of the Network IC and parts already been replaced and messed up.

For a problem like above, it would just take me 1 to 2 hours to repair. But let say if someone repaired it before,  I might need to replace everything related to the network that they touched.
And the time I need to repair it becomes much longer.



What have they done on it (Technical explain)

They removed the WTR transceiver IC and measured the resistance but found nothing unusual. Then they usually started to blindly replace network IC one by one.
Some even will go to reball the Baseband CPU and changed BBPMU.

They touched almost everything related to the network. Yet, they can't fix the problem.

If you are a technician who reading this and expecting to get the solution from here, then sorry. I can't provide what you wanted.

Because Cellular Network is complicated in a smartphone nowadays. When I was teaching my students about the Cellular Network, it took me many hours to complete the cellular theories. So I'm not gonna explain things in a blog like this.

If you learned from another school before and still unable to repair this, I believe:
1. You have an outdated knowledge
2. You don't know iPhone board components very well
4. You lack the procedures of diagnosis

iPhone Network IC problem fixed

iPhone Network IC fixed
Done! All carriers detected.

Why I'm different from them?
Because I didn't just learn from one academy. The knowledge, skills, and tools are combined together from multiple academies.
Have you heard of GLON, FAE, FoneKong, FixST, and REWA?

Is there such a guy who keeps paying money to repeat learning similar things from different schools?
I think no. Not even me.

Then how I do that?
Well, it's easy. I just sent my workers and friends to go to a different famous school and then we shared the things we learned.

14 November 2019

iPhone 8 Plus Error 9 | Logic Board problem | Stuck in Recovery

iPhone 7 series and iPhone 8 series are similar design.
But the iPhone 8 series is the most problematic.
I mean it's a super fragile logic board.

I'm sorry, only professional that repairing the iPhone logic board every day will have the same opinion as me.
iPhone XS Max, XR or whatever models of board problem, they are all have a good reason to be broken. From water damaged, dropped too hard, capacitor burnt...

but iPhone 8... 😆




Today we received an iPhone 8 Plus stuck in recovery mode problem.
As usual, the owner said Apple Center it's a logic board problem and couldn't do anything.
The owner hopes we can repair it or recover the data.

There is an article about iPhone 8 motherboard problems I wrote before.
LINK: About iPhone 8 motherboard problems


The first diagnosis method is a software check. I know most of the users they know how to do, but this is a STANDARD PROCEDURE. We don't want to mess with your hardware without a reason.
But don't worry, we won't risk erasing your data like the Apple or handphone shop.

In order to fix the iPhone software problem without erasing the data:

  1. Put the phone in Recovery Mode
  2. Connect to PC iTunes.
  3. Click Update (DO NOT CLICK RESTORE)
The iTunes will overwrite/reinstall the iOS, but your personal data will be remain.

What? That simple? Yes, after iOS 12 released, the PC iTunes Update/Restore function is better than before. 99% of software issues can be fixed by this.


But in this case, the iPhone is already in the recovery mode. So we just plug into PC and hit update.
iPhone 8 Plus stuck recovery repair
Take note of the serial number. This will be the same iPhone we repaired later.

iPhone 8 Plus error 9 | Stuck in Recovery

iPhone 8 Plus error 9
As we expected, an error shows up before the progress bar moving.
After two minutes, it showed an error 9. By here, we already know it's a hardware problem.
Lots of end-users don't know what is error 9. They will just google or read Apple forum and blah blah blah. In the end, they only found out it's a logic board problem.

They told you it can't be repaired.
But actually, it's them who don't know how to repair it.

But what is error 9?

Some repair guys will tell you the error 9 is the hard disk or a NAND problem.
The iPhone / iPad unable to detect the hard disk.
(iPhone hard disk is using NAND flash, so basically they said NAND also mean is Hard Disk)

But they know the problem because we told them. They don't even know how we know.
Academy like us made a whole list of error codes put on internet. I taught my students how to diagnosis the error code by NOT googling, because some result are outdated or not suitable.

All of my students must be trained properly. Don't just apply whatever solution you got from google and tell the customer it's the problem.

So how do we know the iTunes error code is what problem?

Well, Not many people love to research and blog reading like you.
There is so much information on Google. But you need to filter a lot of useless info to get this kind of professional answer. I'm going to give this for free.

As I said before, the professionals don't share their tricks or they are just too busy.

To know the error code we need to decrypt the error report from the PC. Every time you restore/update in iTunes (doesn't matter success or failure), it will create a report txt file in your PC.

In Windows, the file is located in the \AppData\Roaming\Apple Computer\iTunes\iPhone Updater Logs
Remember to turn on show all hidden files.

I'm not going to teach you step by step to locate the folder because I don't know what drive you installed your iTunes and your user name of the window. The info above is enough to let you know where the file is

If you don't know then is mean you don't know how to operate a window PC or a Mac. You just know how to check the email or to surf the net. So you are not suitable to be a pro in repairing smartphone.


iphoneupdaterlog
An example of the log file. We will read the last few time stamp to know what's process it halts at.
But you need to have little computer knowledge to know what it says.

How to fix the iPhone error 9 problem?


Lots of noob technicians would immediately replace the NAND and restore it. They don't care about the customer's data. All the data will be gone and the problem might not be solved yet.

A data recovery expert would follow the procedures below:

  1. Check any NAND related capacitor is shorted
  2. Measure the NAND is getting the correct voltage
  3. Desolder the NAND and put into NAND programming tool to check
  4. Check all connections on the motherboard especially between NAND and CPU.

If we found the problem in steps 1, 2 and 4, the customer's data is safe and able to recovered.

If step 3 is failed, the NAND is unable to read from the tool. Reclean the NAND and measure the chip pads. Put into another tool test again. If it's still unable to read, then the data is unable to recover.


iPhone 8 Plus error 9 repair NAND
Desolder the NAND nicely. DO NOT overheat. iPhone 8 series motherboard is fragile, you might ended up with more problems.

Unfortunately, the iPhone 8 Plus we got today is the NAND problem. All the data were unable to save.

We need to replace it according the storage size of the old NAND.

We can check the storage size from internet or read the label from the NAND surface.
If it's 256GB then we replace a new 256GB on it.

But we install the new NAND on it, we need to reprogram the data in the new NAND.
Apple won't let it activate if the NAND comes with an invalid Serial Number, Bluetooth address, and WiFi Address.

But the old NAND is unable to read, then how to get those data?
We can buy the info from Apple insider.

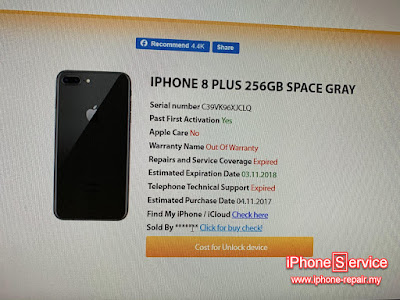

Buy bluetooth and wifi address
Those guys have some web site for people like us.
Normally we use it to check the iPhone lock status, do factory unlock.


After we programmed the original SN, BT and WIFI address on the NAND, solder the NAND back on the logic board.
It will be DFU mode. Hit restore in iTunes and it will install a latest iOS on it.


iPhone 8 Plus error 9 fixed
Done! iPhone 8 Plus error 9 fixed.

Conclusion

Not every error 9 is the same problem. Most of the cases on other models can be repaired with the data still remain.

As I said earlier, the iPhone 8 series is the most problematic iPhone ever.
This iPhone 8 Plus is barely one year old.
The stupid NAND just died for no reason. The quality of the parts is so bad.
If anyone wants to buy a second-hand iPhone 8 or 8 Plus, I wish you good luck.









12 October 2019

Wireless transfer data to new iPhone

How to transfer data wirelessly to the new iPhone?

I don't see an option to use wireless data transfer from my old iPhone to the new iPhone. It's also known as AirDrop.
option to transfer data wireless iPhone to iPhone
Where the hell is the option of transfer data using airdrop?


I know this might be a dumb question...
But some people might be just like me didn't see the option of wireless transfer.

The option of AirDrop data transfer to new iPhone

It's on the earlier page of the setting step by step.
Very easy to miss it.

It's exactly after we selected the country.

Step 1: Go to this page

If you don't see this page after selected the country, you need to reset your new iPhone.
Go to Setting - General - Reset - Click Erase All Content and Setting.

Step 2: Place your old iPhone close to new iPhone


Step 3: Follow the instruction and it will begin.


I always skip the blah blah blah from Apple. That's why I didn't see the option of airdrop transfer data to the new iPhone.
Stupid Apple or me stupid?

By the way, enjoy your new iPhone!

06 October 2019

Blog update Oct 2019 | Very Busy

Why no blog update recently?
People would imagine no business...
No. On the contrary,
recently I got too many devices need to repair.

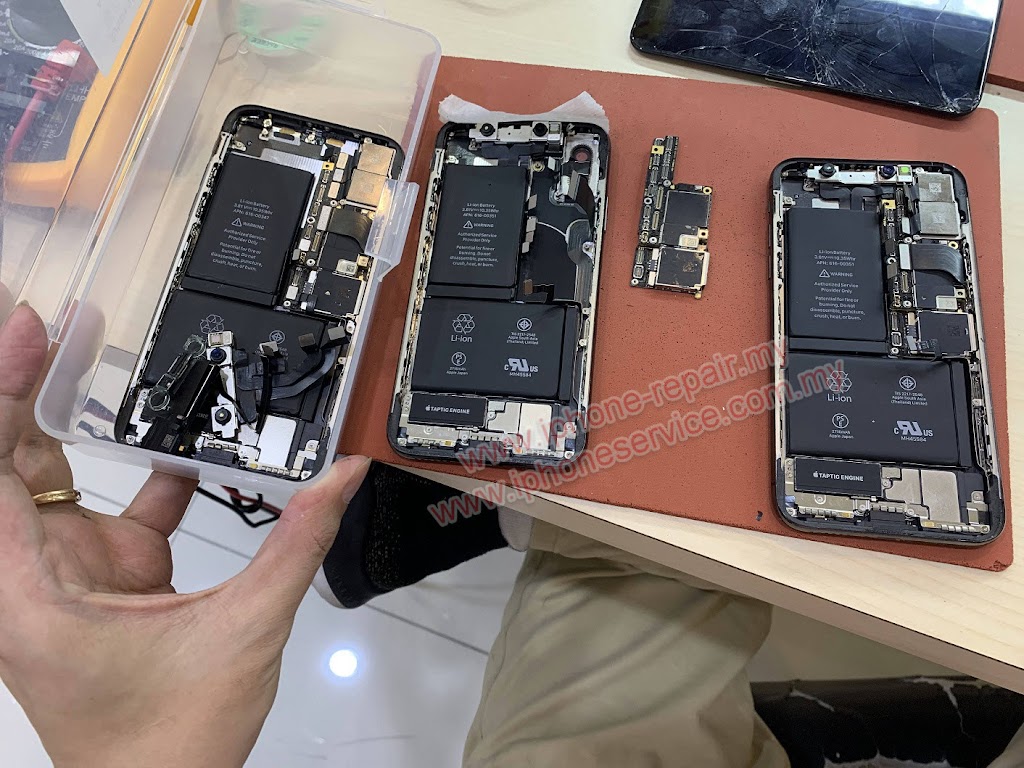

Especially iPhone X motherboard problem. I want to make a video for it to let you know how the repair becomes more complicated compared to the older iPhone.
But need time to combine and edit the video so you guys no need watch one-hour unedited video how I fixed it.



Sometimes I need to rush 3 iPhone X per day. All are motherboard problems.


Renovation of iPhone Motherboard Academy Malaysia
Yes. My academy that teaches iPhone motherboard repair is under renovation.
Now is almost complete.

Renovation still not ready, but I have four students from Iraq who must complete their course and training within 30 days.


So recently any inquiry in WhatsApp will be late reply.
If you have urgent matters or inquiry please call office 03-89573836.




17 September 2019

iPhone Storage Upgraded to 512 GB | iPhone 6S and iPhone 7

Today we have done two iPhone storage upgrades at the same time.

iPhone 6S from 16 GB to 512 GB and iPhone 7 from 32 GB to 512 GB.


Sometimes there are few foreigners who come here for this service. They can't see this kind of service available in their country.

The left iPhone 7 owner is a pilot. He visits our store while stopping in Malaysia.

iPhone Storage upgrade to 512
Don't laugh at the old iPhone 6S, It can be a super photo album that stores more photos than your iPhone.

Memory storage that big can be useful for vbloggers. They need a lot of storage for videos.

Which iPhone support to 512 GB?


  • iPhone SE
  • iPhone 6S
  • iPhone 6S Plus
  • iPhone 7
  • iPhone 7 Plus
Yes... Even the iPhone X is unable to support 512 GB.

23 August 2019

Moving into New Web Site

We are moving into a new web site slowly...

www.iphone-repair.my

  • Price list
  • Mobile-Friendly View (Text are bigger if you view in iPhone)
  • Step by step diagnosis and quote (Coming)

15 August 2019

iPhone Data Recovery | Apple Center Can't Backup damaged iPhone

This article is about what we can offer for data recovery service from a damaged iPhone.

Because I just received a feedback from a very kind customer.

She had an iPhone 6 that is badly damaged and need to recover the data. She visited the Apple Center they told her the data is unable to recover, but they can replace it with another device instead of repairing it. The price is outrageous.

I must say this again
"There is no Apple Service Center or Apple Repair Center.
There are only Apple Replacement Center."

As a real iPhone Data Recovery Center, we can offer 3 options:

  1. We borrow the parts just to let it works for backup or transfer. Then we take our parts back once it's done. No repair needed. We charge RM50 or RM80 depends on the model.
  2. We repair it all.
  3. Repair until it can be turned on for bringing back your home to backup. (Suitable for motherboard problem)

In the end, she picked option 2 to save the environment getting worse by dumping more electronics stuff. Noble thought!


By the way, I still seeing a lot of shops they called themselves a specialist but they are very hungry and not going to offer option 1

If you looking for data recovery from iPhone motherboard, check link below.

RELATED LINK: Data Recovery from dead iPhone

31 July 2019

Apple Certified Technician? ACiT

"We are Apple Certified iOS Technicians. Anyone can be one too."
Get a Tech ID and then pay $20 take and pass the SVC-19, then the Apple Certified iOS Technician (ACiT)"
Apple Certified iOS Technician, certified by Apple. It is easy to do, open resource, and frankly--quite dumb. It's just an online exam.

Truth about Apple Certified Technician

It's so hilarious seeing some repair shop showing this so-called ACiT Apple Certified Technician to the customers.

"Pandai cari makan."

I tell you the truth.
Even for the Apple Technician that working inside the center, they can't repair the job I do every day such as
motherboard problem and data recovery.


One of my reason that not want to be authorized Apple Service Center because they DO NOT allow us to repair anything that beyond screwdrivers can do. Especially soldering.

They only allow screwdrivers job to replace parts. Such as Battery or LCD replacement.
If a bigger problem then needs to requests a replacement of the same model which all the memory data can't be saved.

This is not a real repair.

I'm more like "True Repair Art" instead of "Replacement Art"

In the end, I just wanted to say...
Apple Certified Technician NOT helping






22 July 2019

Upgrade iPhone Speed | Hardware speed up iPhone

Speed up your iPhone by hardware modification


I'm sure from what you know or someone told you that the iPhone speed is can't be upgraded. But I'm saying the otherwise.
I'm NOT talking about software tune-up shit. I'm talking about the hardware upgrade just like a computer by adding more RAM, change CPU or SSD.


Today I would like to share how the speed upgrade is possible. But the works can be only carried by an expert like me.

Because I get the non-stop people asking me this question:
"Is it the bigger storage of the iPhone and it will be lagger (slow)?"
The answer is NO.
Because the speed is entirely up to the memory chip.
Exactly like you buying a memory SDcard that have many different brand and speed.



And the memory chip of the iPhone is called NAND flash. As I said many times before, Apple doesn't make storage. They take the supplies from Sandisk, Toshiba, Hynix, or Samsung.

I know you guys expect all iPhone hardware is the totally same performance compare to the same model, but now I tell you it is NOT. That's why sometimes your friend's iPhone runs better than yours. Not only in terms of speed. The cellular or network performance is also different. You never know what you bought. Different batch and location can have differences.


So back into topic.
Apple is smart... or I can say the manufactures of NAND too. They use a lower grade of NAND which is slower speed for 16/32 GB.

Lower Tech = Cheaper Cost

Below is the comparison of 32GB and 256GB NAND.
The speed test is based on the iPhone 6S with A9 CPU running PCIe.


32GB NAND PCIe speed
32GB speed test



256GB NAND PCIe speed
256GB speed test

As you can see from above.
32 GB is running an average speed of 48 MB/s (384Mbps)
256 GB is running an average speed of 67 MB/s (536Mbps)

It's about 40% speed increased

The photo I show is only the writing speed. I believe the reading speed is much more but I want to keep this article short.

So I'm not bothering to explain TLC and MLC different. Because what I'm doing today is to tell you that by changing the storage of the iPhone or iPad, the speed can be upgraded as well.

Please don't think the Toshiba is slower. Other brands are also slow if they are the low capacity storage type (16GB or 32GB).


BUT

don't expect it's a very noticeable speedup. Because a lot of works are still depending on the CPU and the RAM especially when it comes to multitasking.

Summary

The speed difference is noticeable for video editing, loading a bunch of photos, compressing a file before sending, loading game time decrease, transferring between PC, backup and more...

iPhone 6S support 512GB
Have you seen 512 GB iPhone 6S selling in Apple?

14 July 2019

Unlock iPad Apple ID Guide - How to unlock iPad Pro Cellular


First of all, if you found any lost device, please return to the owner.

If for some reason, you need help, but Apple doesn't help you.
Then you can find us to do a factory unlock.

If you want a cheap or bypass method, it's not in here. Here we talk about how to factory unlock it and without any side-effect.



iPad Pro 12.9 4G
NOTE: Cellular version of iPad and WiFi Version iPad are NOT unlock the same method.

Now this is about a real case of "How to unlock an iPad Pro 12.9 Cellular version".

First of all, you need to know how the Apple ID lock works.

How the activation server works

The device locked status is not stored inside the memory or the hard disk. This is mean no matter how you reformat or erase the software, it's still unable to activate because the Apple server requires you to sign in the previous Apple ID that logged into the device.

So the lock status is based on the Apple Server.

We need to know what kind of information the server is reading from our device

For sure the Apple Server is recognizing our device through unique info that is programmed on our devices.

So the expert like us will do the experiment by editing the device info to fool the server. Below is what we found out so far...

  • If the device is a Cellular version (SIM card), the server will check the IMEI, Serial Number, WiFi Address, and Bluetooth Address.

  • If the device has no SIM function, the server only checks the Serial Number, WiFi Address, and Bluetooth Address.

This 3 data must be the same set, no mixing, or randomly typed in. This means the whole set of data info must be exactly from a device the same as what they sold.

Or else their server won't be allowed the device to be activated and saying there is a problem in your device as the screenshot below.





Methods to unlock Apple ID / Bypass Activation available so far...


  1. Hack their server - If you are a pro hacker, then hack their server, but I don't think a super hacker will bother to do a small job like this.

  2. Jailbreak - Use a third-party app to bypass the activation page. But this method is available for certain iOS version only. Usually this option is not supported for the latest iOS and it will be locked if you update the iOS.

  3. Apple Center Unlock for you - Yes, as long you have the receipt of the purchase to prove you're the owner.
    Don't expect you can pay someone in Apple and they do for you. Because there will be a record of which technician logged out the ID of the customer device.
    Apple already fired a bunch of technicians because of it. Especially the customers reported seeing their lost device is not in the iCloud list suddenly.

  4. Reprogram the device to fool the server - Yes, this is today's topic.

We can edit the IMEI and Serial Number to fool the server?

Yes. But as I said before, the server is comparing the info of your device with their record.

But to reprogram the IMEI is NOT possible. Because the IMEI is stored inside the Baseband CPU and it's designed to be unprogrammable.

"Baseband CPU is a long story to explain, I might write another article for it"

But the info such as Serial Number, WiFi Address and Bluetooth Address can be edited through a hard disk programer machine. It's the same method that I wrote an article about upgrading storage before.

Because the SN is stored on the hard disk. But technically the hard disk they used is NAND flash. So we should say it's the NAND.

Why we have the tool to reprogram the NAND?

Because Apple doesn't own any factory to make the NAND flash. All the iPhone and iPad are using NAND flash memory.
The major NAND manufacturers are Samsung, Hynix, Toshiba, and Sandisk. Apple bought the NAND from them.

This is why we can easily to get NAND programming tools.



Back to today's topic - Unlocking a cellular of iPad

If we just changed SN, but the IMEI is still there, the server will still be blocking us to activate.
Remember, the devices that have IMEI are those devices with supported the SIM cards (
iPad Cellular version and the iPhone).

So if a device doesn't have IMEI (iPad WiFi Version), they are all can be unlocked easily by just reprogramming the SN, WIFI, and BT.

Here is the video of how to unlock the iPad WiFi version.



What about the iPads Cellular version? Can it still be unlocked?

Yes, but we need to disable the IMEI. (SIM cellular function / Baseband). So the iPad Cellular will become an iPad WiFi version. But we still need to change the SN, Wifi, and BT.

If so, then the iPhone can unlock?

No. It's because if you disable the IMEI (Baseband) on the iPhone, then Apple Server recognizes it's a brick and having a hardware problem. It will say there is a problem with your device and tell you to send it to Apple Center.


Let's continue to read how to unlock the Cellular of the iPads.

How to Unlock the Cellular version iPad Pro


The first step is we need to disable the IMEI of the iPad.
It's simple. We just remove a specific resistor on the motherboard, and then the iPad will become a WiFi version.
Literally, we are converting the Cellular iPad to a Wifi iPad.
How to convert iPad Pro 12.9 4G to WiFi

After the steps above, the iPad will be stuck into DFU mode. But DO NOT restore it yet.


iPad Pro 12.9 4G logicboard
Take the whole board out of the housing.
Because some models need to take out the NAND to program it.
This NAND removal is done by using a "hot air soldering station".
So you need to be well trained in micro-soldering and heat control, or else you're be killing the board.


iPad PRO NAND
Tips: Be careful when removing the NAND IC, you sure don't want overheat to affected the RAM or CPU. It can end up unable to power on or keep getting a 4014 error.  If you get into that kind of situation, only a trained professional like us can do the re-ball the CPU and RAM.

If you're a newcomer who wants to learn this, I advise you to cut the shield that will absorb the heat away. The shield will be causing you to take a long time to remove it.
DO NOT PUT any thermal tape or coin. Those shit will only cause you more time to take it out.
Long time heating = High Risk
Come to my school and I'll teach you how to master the heat station. You won't be fear in any job, especially the iPhone.

After you removed the NAND, put it into the NAND into a programming tool to write a new SN, WiFi, and BT address.
The Apple Activation Server will check this info, make sure the info you got is from a legit Apple iPad and it has no Apple ID lock.

If one of the info is mistyped or incorrect then it will be unable to activate.

In the programming tool, we need to click the "Unbind the WiFi" also. Because the NAND is paired with the specific WiFi IC. Unbind the WiFi can let us use any WiFi IC.

Now the NAND is ready to be solder back into the logic board.

You think you're done?
No, not yet.

Because once you activated,  you notice the iPad WiFI isn't working!

Yes, even you already click unbind WiFi. We still need to replace the correct WiFi chipset for it.

Because of the Cellular model and WiFi model's WiFi chipset is NOT the same.
So the WiFi won't be working at all. The WiFi button will be grey out and unable to turn on.

But this problem is only happening on the iPad that is A9 CPU and newer. Older iPads don't have this kind of problem.

So the last step of this unlocking, we need to replace the correct version of the WiFi chipset.



iPad Pro 12.9 WiFi IC code
We need to buy the WiFi model's WiFI IC to replace it.
Tips: the WiFi chipset of this iPad code is ended with 0045.

iPad PRO WIFI IC
Remove the WiFI IC is straightforward. You can heat this area by using a very high temp and it won't get a problem.

Tips:
When you install the new WiFi IC, be sure to use a lower temp of soldering paste. Normally the new chipset is easy to get damaged from high temp.
Final step - Assemble everything.
Connect it to iTunes and click Restore.
It will download an iPad WIFI version firmware to restore.

Finally, you're done!
Tips: Always censored the SN. Because the experts like me that have similar skills can steal your SN. You'll be screwed if you haven't log in the Apple ID on it.


iPad remove iCloud
DONE !!


FAQs:
Q: Can I still update the iOS in the future?
A: Yes

Q: Can I use a new Apple ID after that?
A: Yes

Q: Will the "ex-owner" able to track it by GPS?
A: No. The whole device became another device. The server only recognizes the device from the SN.

Q: Why they didn't block this kind of unlocking?
A: So far they won't. Because this method is very extreme and only a trained professional can do it.

23 June 2019

iPhone Motherboard Dead Repair | iPhone 7 Dead for no reason



How to repair iPhone motherboard dead


I still seeing countless of customers' iPhone been sabotaged by an inexperienced technician.
Many times they caused the customer more expensive to repair or either caused them to lost all the data memory.


I'm going to share a journey of how to repair a dead iPhone 7 that is fresh and nobody touch it yet.

This customer told us the phone suddenly off and unable to turn on anymore. Apple and other shop telling him is a motherboard problem.
Lucky he googled and decided to send it to much more experienced guy to do the works.  Thumb up!  :)

The well-prepared guy deserved good luck.


I love to repair this type of problem. Especially the phone becomes dead for no reason. Phone? Actually, I mean any model of smartphone.
But only meet the condition below.
  • No hard fall
  • No liquid damaged
  • No third-party charger used
  • No modification of hardware
  • Just suddenly become dead for no reason.

I made a video on YouTube if you are lazy to read the article, you can watch the video instead.

Continue to scroll down for long article that with details, why and how.


The article has much more to say. If I make the video too long, no people have time to watch entire video.





I love to repair this kind of case, ONLY when I'm the First-hand who fix it.
Because - a lot of amateurs claim that they know how to repair the motherboard, but instead, they only know how to change the IC.
They don't know how to troubleshoot and would blindly change whatever IC that is related to power. Especially the "Power ic."
Plus, some of them lousy soldering skill, they usually created a mess or more problem than it had.


By the way... iPhone that suddenly becomes dead for no reason is usually because of a component failure.


A component that is related to power.
Might be an IC or small little thing like a capacitor.
And most of the time, it is the capacitor.


Because in term of lifespan:
 IC > capacitor





This is a capacitor that we see on a circuit board, inside TV or computer motherboard...
A capacitor has its own lifespan. It is just like a water tank, it will be broken if too old or overstress.

capacitor compare
Have you seen the bulging capacitors before? That's the problem. In the old days' people who repairing TV, they replaced a lot of these components that causing the TV malfunction.

Last time I fixed my Asus router by replacing faulty capacitors.
And my graphics card too.
You might wonder I can repair those too? Yes. for the sudden death issue, because most of the time I just need to fix the shorted components without a schematic.
But the iPhone uses a lot smaller size capacitor. As you can see, the red circle capacitors compare to my finger.
Some are tiny. Smaller than nose shit I can say.

So this kind of repair would be a simple job for me. But not for others...
In Malaysia, very few technicians are qualified to troubleshoot the iPhone motherboard problem.
Blindly changing parts or IC is those "fast repair shop" feature. Quick money.

Too bad that a lot of customers not knowing the difference between "fast repair shop" and "a specialist shop."

Louis Rossmann once said, "Mall shop" can't repair a thing. I bet the difference because I'm at the mall. LOL...   We should say never trust the "franchise repair shop," they just can't focus all the best technician in one place.
Best pros are always staying in one spot very long time.

Why not move into shop lot? I don't want the next morning open my shop and found out my roller shutter is half opened and inside is empty. You know what I mean in Malaysia.
The second benefit is the customers can wander around the mall while waiting. Easy parking and security...


Back to topic...

iPhone 7 motherboard shorted

 First step - Plug into Power Supply and read the responses.


When we haven't turn it on, it shouldn't be drawing any power.
And in this case, it's already drawing 0.8A when giving a good battery power which is 3.8v.
So this is the problem what we called "motherboard shorted"
For those who have some experience, they would think Oh yeah~ It's the VCC mainline shorted. Piece of cake.
But they found out the caps of vcc_main and batt_vcc have nothing short.
Example like this guy commented on my Youtube, screenshot below.



In my video, a pro can notice when the time I was giving the power slowly, the meter was showing the iPhone doesn't draw any power until reaching 1.8V.

You can see the meter didn't rise until the 1.8V.

But once the power exceeds 2.0v above, the meter is showing immediately needle rising indicated something is drawing power.
To a much more experienced technician would already know something is tricky in this board.


That's why I said earlier, there are very few technicians that are qualified in the market.




Second Step - check for heated component


If there is a water leak, the leaking spot will be cold.
But what if it's an electricity leak? Then the leaking spot will be hot.
Understand?

In the traditional way of repair, we will force it to continue to receive the voltage then use our fingers to touch the board every component one by one. To feel which one is hot and it's a problem.


But with a well-equipped guy like me, would immediately waste no time and to take out the thermal camera to scan it.
Screw the finger or rosin technique.

Found out one of the IC is very hot. 97℃

A normal guy would think: "Found the problem, let's change it!"

NO! HELL NO!!

Please... A correct way to repair is to analyze what's that IC for and find out the reason why it becomes a problem which is our

Third Step - read the diagram


I know lots of shop in Malaysia keeping your iPhone for two months or longer and then failed to repair it. You know why? Because they can't find the real problem and the whole iPhone is already messed up by blindly changing IC.


Okay, let's open up the schematic of iPhone 7, check the location of the IC and zoom in to read the label of this IC.
It's called U2301.

You might ask where is the schematic.
You can download it here.


Once we know the name of the IC, press CTRL + F to search and type u2301. You will find this IC's diagram.
Here I'm not going to teach whole diagram reading here. I try to make this article short.
Watch the video if you are intereste
d.


From what we see in the diagram. This IC just to provide voltage to the other side.
According to what I read from this diagram, I understand this is one of the kick start systems that don't exist in the previous generation of iPhone. They called it Boost.

I'll try to explain noob version: Once the board detects the voltage is enough, this guy will make sure power stabled and pass it on to other few critical components.
Well, in every iPhone there is already have one similar IC. They added another one since iPhone 7.

So there is a high chance this guy is not the real problem.
Immediately we use a multimeter to check it's output circuit line.
How do we know where it goes out? By looking at the diagram, you will see "VOUT". Clearly, it means voltage out.
Then check those capacitors that on the bold line of VOUT.



The highlighted whole line is shorted.



Fourth Step - How to check who is shorted in all those highlighted components?

Because there is only one component become faulty in this kind of sudden death issue.
The only way to find out is to give them exactly the voltage they need. By doing so, the real faulty component will take the heat itself.

First, we remove the IC that protecting them. Inside we make a jumper connect main voltage into this shorted line.

Remove this U2301 IC


Then solder two points with a wire. This is what we called - Jumper.
After that, connect to the power supply and start slowly supplying voltage on it. It's still showing shorted but this time would be different. Because the original source of the problem will take the heat itself.

If you don't have the camera, no problem. Use your finger.
or rosin technique.
As I said before, 99% is the capacitor problem for "Sudden death issue".
Remove it and the problem will go away.
Replace it if you want, but you might think isn't that will affect the device working properly?
It won't for this line.
Example let says the house you living have many reserve water tank, and if one of it is removed, your home would still have the water supply from outside.
Understand? Your house's continuous water supply is from outside. Not the tank.
But take note of this - Depends on the diagram and the capacitor purpose. I only explain more details in my course.

Once we removed the problem capacitor...

See? It'll still work without it and the IC but...

Final Step

We still need to solder the U2301 IC back on it though.
Because if the same problem happens on this line, it might burn a hole on the motherboard.

Countless irresponsible technician out there, they seem don't care. Maybe their volume of repair is low and I'm a specialist that only repair Apple, with that much of volume devices repaired... so I had encountered second-time capacitor problem that really burnt a hole.


All memory data is not affected. Done.
